TabData is the Tabernus Report Generator that allows detailed viewing/filtering etc. of the erasures of assets performed using Tabernus Enterprise Erase products.



Browser-based, TabData has numerous features and benefits that greatly enhances user experience of gathering reports, whilst adding to the functionality and flexibility of producing erasure reports and particularly the CESG Certificates that are the essential proof of a secure data removal.




Installing TabData


On first use TabData will require installation, but this is a very swift and simple process. Simply click on the red Firefox icon at the top of the screen:


Figure 1: Firefox Icon


Click on the TabData Install button, as shown below:


Figure 2: Install TabData



TabData will install automatically.


Figure 3: Confirmation of Install




Click on Go to Home Page. The Home Page will open.

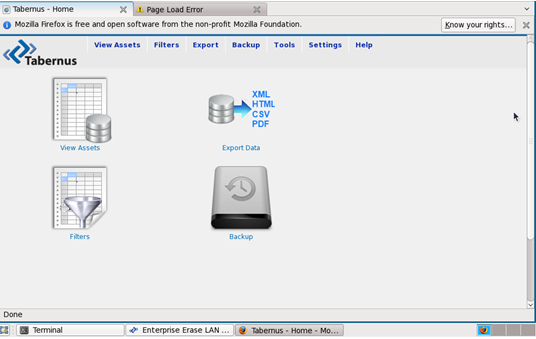

Figure 4: TabData Home Page



Click View Assets on the Home Page to see the erased assets report:

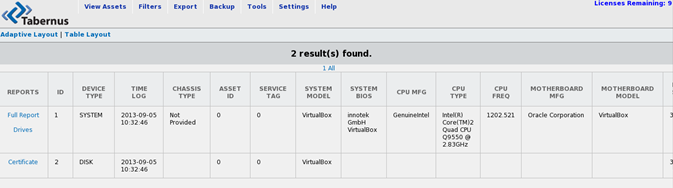

Figure 5: View Assets (full width not shown)






Using Tabernus TabData


Should you click on the Firefox icon and not be taken to the Home page, simply type localhost/tabdata into the browser's address bar as shown below:

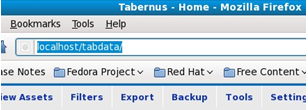

Figure 6: The TabData Address



Tabernus TabData allows detailed interrogation of the assets you have erased using Tabernus software. As mentioned above (Figure 5), click on View Assets to see the full list of erasures. From there you may drill down to view more specific information and/or data in various complied formats. Clicking on Full Report for example provides a detailed overview of the erased asset as shown below (Figure 8). Accept the default document viewer as shown below:


Figure 7: Accept Default Viewer

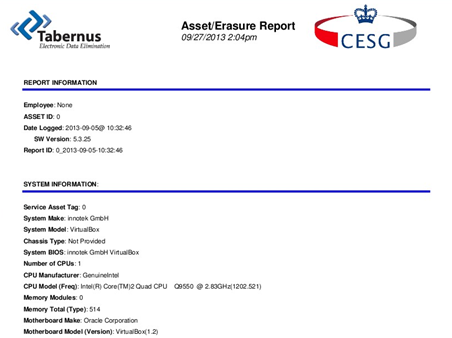

Figure 8: Full Report from View Assets Screen






Using TabData Filters


TabData Filters are a powerful tool for obtaining reports on subsets of the available data based upon options chosen by the user. Split into a few option groups (Columns to Display, Time Range, and Systems/Disk), there is also a search option*, 'order by' and a results per page choice.


*With the search option, wildcards can be used, but instead of the asterisk (*), the percent symbol is used (%) with this system.

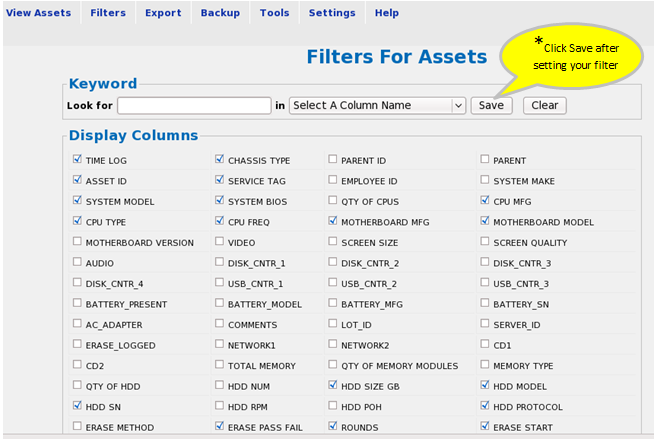

Figure 9: Screen results using a wide range of criteria



Having selected your filtering criteria, ensure you click on Save* to enable the filter to work correctly. A number of commonly required parameters are selected by default. Often a user will want to have a report of erasures performed between two dates, or a particular day etc. for which Time Range is ideal.


Using wildcards is straightforward and intuitive: if you type in %H1% with a selected Asset ID, all assets that have 'H1' in their ID will be displayed. For an exact match, use full keywords in the search box.





Exporting Report Data


Report data may be exported to various common formats:


Figure 10: Click on Export Data to Open Export Options



Naturally a memory stick/pen drive may be used to save the reports to be viewed/entered onto a Windows PC to, say, enter into an Excel spreadsheet*.


Figure 11: Data Export Format Options

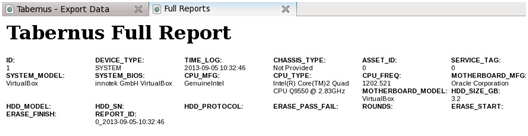

Figure 12: Report Exported to HTML viewed in web browser



* It is possible to access the reports from a remote PC; so your office PC could retrieve the reports from the LAN server (erasure machine) in the warehouse. Contact Tabernus for details.





Backup Report Data


Data is the lifeblood of many modern businesses, needed to run operations, record transactions and measure progress. When you pay for the secure erasure of a data bearing asset, you are essentially paying for the data that proves the data was securely, certifiably removed, and as such your reports are an essential track record of such tasks.


Figure 13: Backup your Report Data




This information is also available to download from the link below:


https://s3.amazonaws.com/Documents_For_Customer_Download/TabData_InstallAndUse.docx
