Setting up a manually configured network for erasure reports in Enterprise Erase LAN.

After completing the standard operating system install, run the Enterprise Erase LAN software from the Desktop.

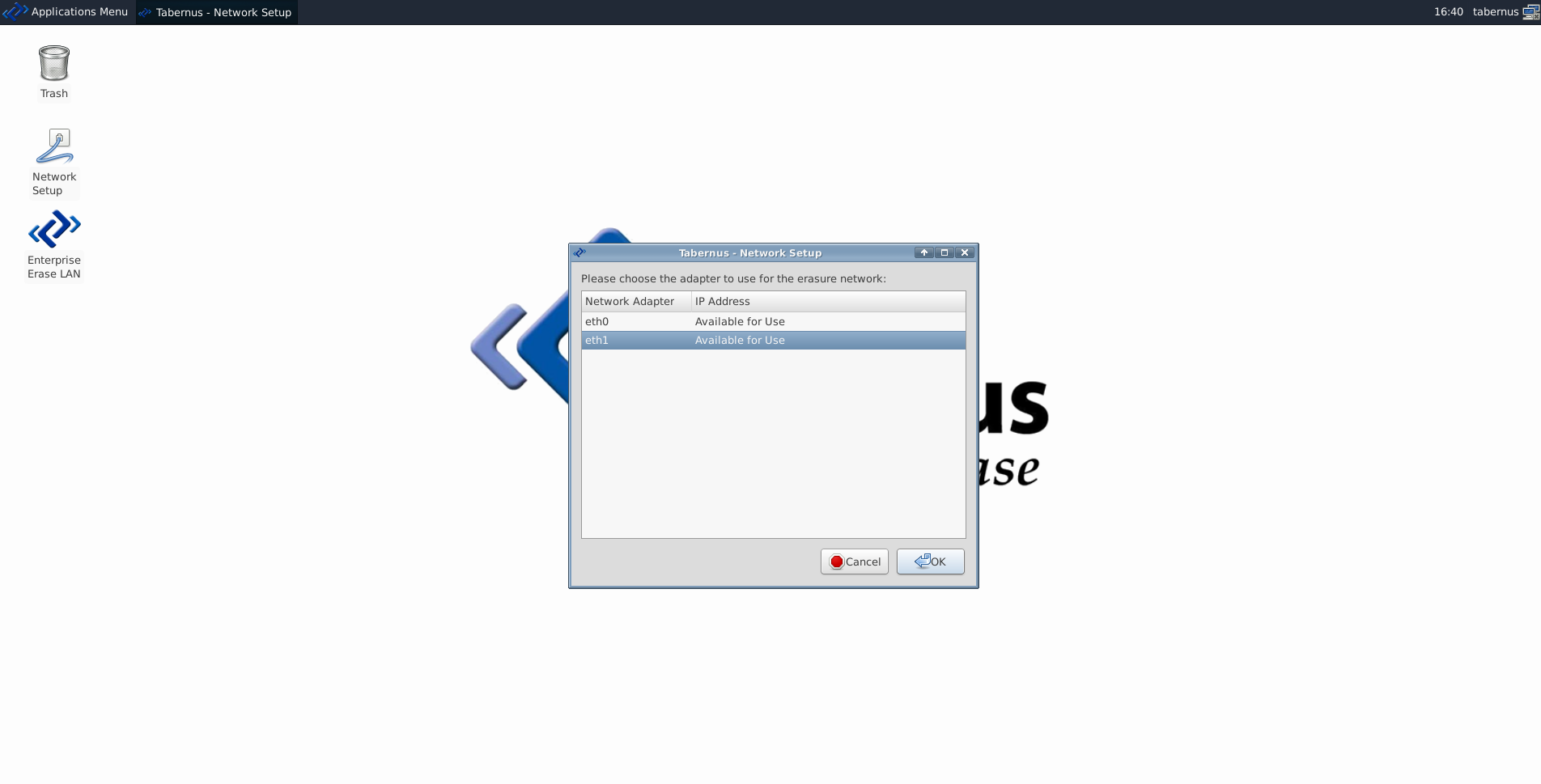

This will launch the network setup wizard.

Select the network interface to be used for the Tabernus erasure, and proceed through setting up this network with an IP and subnet mask.

Confirm the details and proceed.

The software will launch. There will now be a network icon in the system tray (top right hand corner)

You will see the 2 network interfaces, one will report "device not managed" this is the Tabernus erasure network, we will be configuring the other interface. Wired connection 1 in this example.

Under IPv4 Settings, select Manual method, and enter Address, Netmask and Gateway. Save and confirm.

If prompted for a password, enter 'tabernus'.
